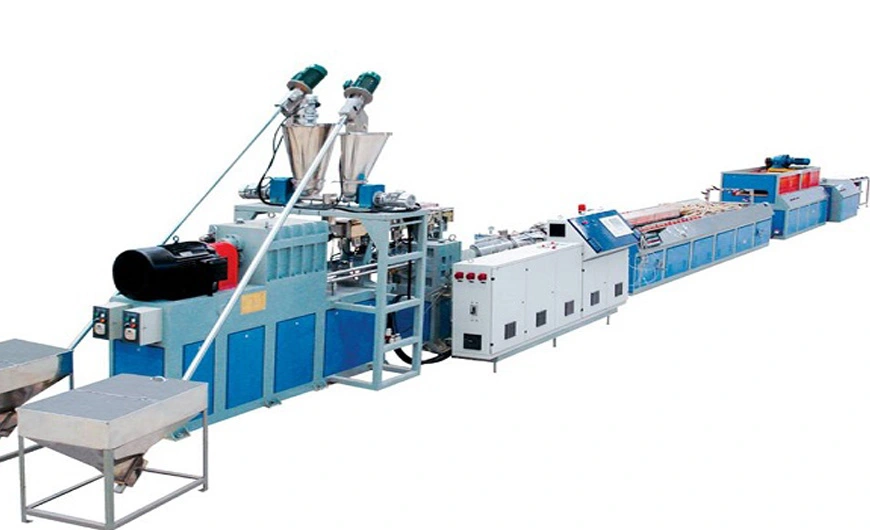

Profile Extrusion Molding Machine
textile waste recycling machine china
textile recycling machine

Waste textile outdoor landscape profile extrusion equipment

The difficult problem in the utilization of waste textiles (old clothes) is how to fully mix waste textiles and plastics. After multiple experiments and breakthroughs, we have developed specialized pre-treatment equipment for uniform mixing and good plasticization. Then, through the lifting device, forced feeding is carried out and enters the specialized extrusion plasticization equipment to achieve plasticization, remove impurities and other work. Through a series of equipment, the waste is spun into usable pallets, pallets, manhole covers and other products. This equipment has a high degree of automation and requires fewer personnel. High efficiency, reducing costs.

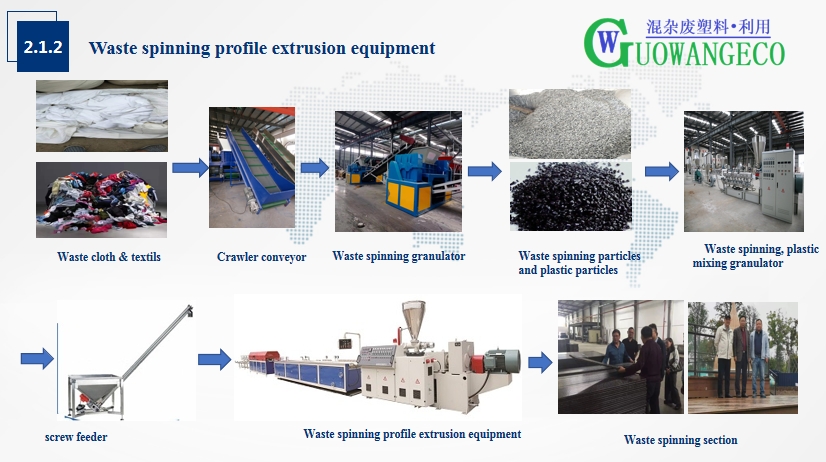

Flowchart of Profile Extrusion Molding Machine



Final WPC Deck Products Can Be Made




Video of Profile Extrusion Molding Machine

Specifications of Textile Waste Recycling Machine

Item No.

Diameter1 (mm)

Diameter2(mm)

Power(kw)

Screw rotating(r/min)

Output(kg/h)

Height (mm)

N.W(kg)

Size(m)


GWFFX-1


55/32


97/132


74


 34.7


 150


1050


3500


3.8*1.3*2.2


GWFFX-2


65/32


97/132


 82


 34.7


 250


1050


4000


4.2*1.5*2.4



Study About Textile Waste Recycling Machine

  • A 2008 study conducted by the Bureau of International Recycling (BIR) at the University of Copenhagen in Sweden concluded that every kilogram of old clothing recycled can reduce carbon dioxide emissions by 3.6 kilograms. This also means that for every additional piece of old clothing recycled, we can slow down some more of the rate of global warming, and we have more hope of preserving a glacier for polar bears.

  • In view of this, our company has invested a lot of manpower and material resources in the research of recycling equipment. A complete set of profile extrusion equipment has been developed, and the waste spinning and granulation are added to the one-step profile equipment together with waste plastics and auxiliaries to directly produce profiled landscape products, which are used for outdoor floors, guardrails, porches, etc.
